4.3 Methods of the map
4.3.1 Probabilistic modeling of the occurrence No.1

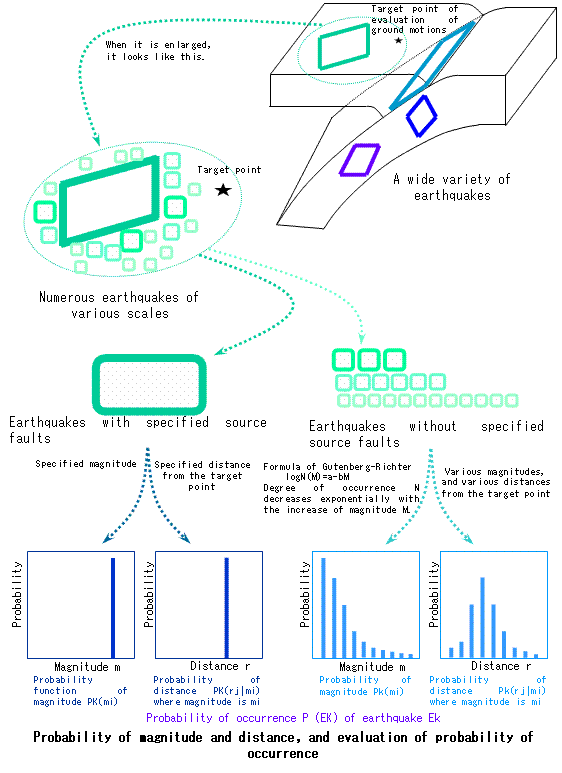

The following figures show the flow of procedures from probabilistic modeling of the occurrence of a wide variety of earthquakes to probabilistic evaluation of seismic ground motion.
